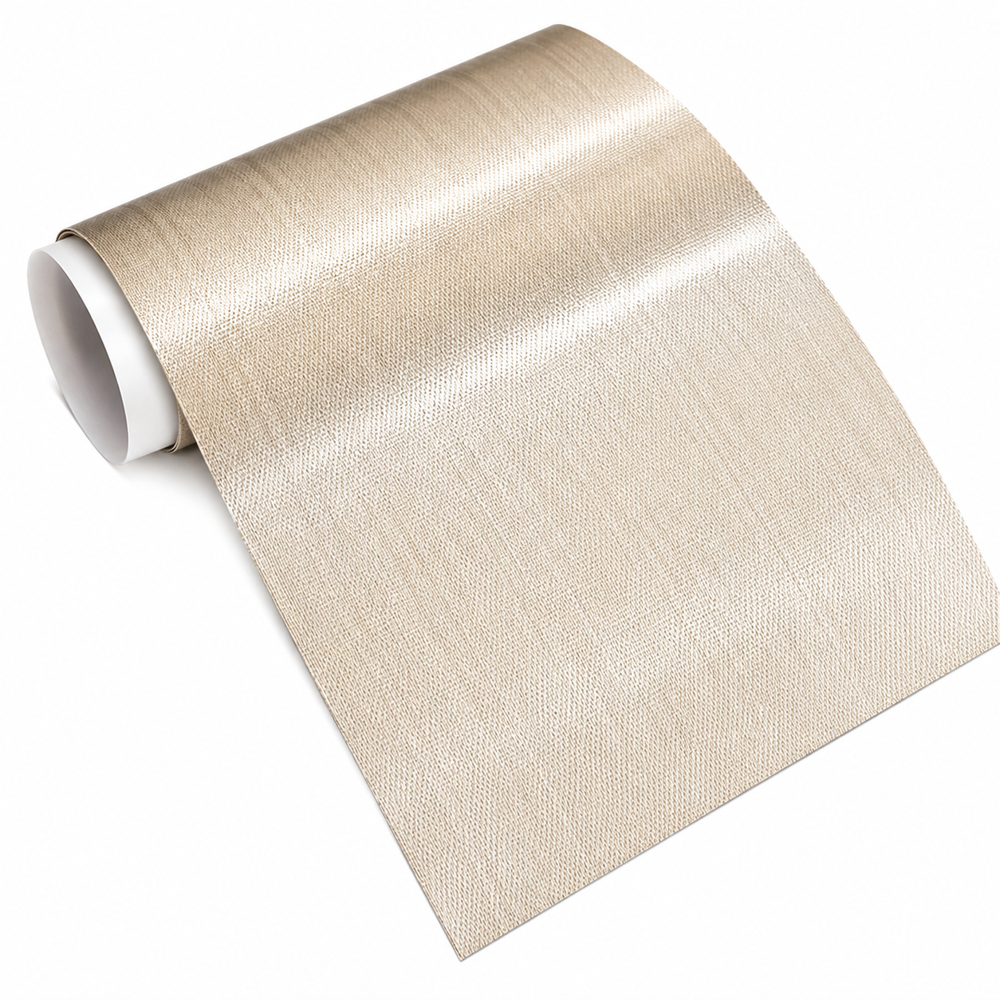

Porous Mould Release Fabric
300.0 INR/Piece
Product Details:
- Peeling Strength Medium
- Elongation <8%
- Thickness 0.15 mm - 0.30 mm
- Shelf Life 12-24 Months
- Length 50 m - 100 m
- Tape Type Release Fabric
- Material Woven Polyester / Fiberglass Blend
- Click to View more
X
Porous Mould Release Fabric Price And Quantity
- 300.0 INR/Piece
- 100 Piece
Porous Mould Release Fabric Product Specifications
- Beige / Natural
- 0.15 mm - 0.30 mm
- Non-Adhesive
- 12-24 Months
- 50 m - 100 m
- 0.15 mm - 0.30 mm
- Release Fabric
- 100 mm - 1500 mm
- 50 m - 100 m
- Woven Polyester / Fiberglass Blend
- Mould Release Application in Composite Moulding
- Medium
- <8%
- Rolls
- Applicable for polyester, epoxy, and phenolic resins
- High (allows resin/gas escape)
- High
- Yes
- Used as a layer between composite and breather during vacuum infusion processes
- >100 N/50 mm
- Fine textured
- Single use recommended
- up to 180C
Porous Mould Release Fabric Trade Information
- Cash Advance (CA), Cash in Advance (CID), Cheque
- 1000 Piece Per Month
- 3 Days
- Within a certain price range free samples are available
- Eastern Europe, Western Europe, Middle East, Asia, Australia, Central America, North America, South America
- All India
Product Description
Porous Mould Release Fabric
Product Description
Porous Mould Release Fabric is a premium-quality woven release fabric engineered for advanced composite manufacturing processes. Manufactured from high-strength synthetic fibers with a precisely controlled porous weave, it enables the efficient passage of excess resin and air while preventing the bonding of laminate surfaces to the mould. This ensures a clean release, smooth surface finish, and improved production efficiency.
Designed for use in vacuum bagging, resin infusion, hand lay-up, and prepreg molding, the fabric delivers excellent dimensional stability, high tensile strength, and consistent permeability throughout the curing process. It leaves a textured surface that is ideal for secondary bonding operations, eliminating the need for extensive surface preparation.
Porous Mould Release Fabric is widely used in the aerospace, marine, automotive, wind energy, sports equipment, and composite component manufacturing industries, where high-quality surface finishes and reliable mould release performance are essential.
Features
-
Premium porous woven construction for uniform resin flow
-
Excellent mould release performance
-
Prevents adhesion between the composite laminate and the mould
-
High temperature resistance
-
Superior dimensional stability during curing
-
Consistent air and resin permeability
-
High tensile and tear strength
-
Produces a clean, textured bonding surface
-
Easy to cut, handle, and remove after curing
-
Compatible with epoxy, polyester, vinyl ester, and phenolic resin systems
-
Available in various widths, roll lengths, and fabric weights
Applications
-
Vacuum Bagging Process
-
Resin Infusion (VARTM)
-
Hand Lay-Up Moulding
-
Prepreg Composite Manufacturing
-
Carbon Fiber Components
-
Fiberglass Reinforced Plastic (FRP) Parts
-
Wind Turbine Blade Manufacturing
-
Marine Composite Structures
-
Aerospace Composite Components
-
Automotive Composite Parts
-
Tooling and Mould Manufacturing
-
Industrial Composite Panels
Technical Specifications
| Property | Description |
|---|---|
| Product Name | Porous Mould Release Fabric |
| Material | High-Strength Synthetic Fabric |
| Fabric Type | Woven Porous Release Fabric |
| Color | White |
| Resin Compatibility | Epoxy, Polyester, Vinyl Ester, Phenolic |
| Operating Temperature | Up to 220C (Depending on Grade) |
| Permeability | Controlled Air & Resin Flow |
| Width | Standard 10001500 mm (Custom Widths Available) |
| Roll Length | As Per Customer Requirement |
Advantages
-
Ensures clean and effortless mould release.
-
Improves laminate surface quality and finish.
-
Allows controlled resin bleed and air evacuation.
-
Reduces production time and post-processing costs.
-
Enhances bonding performance for secondary laminating operations.
-
Suitable for use in demanding composite manufacturing environments.
-
Available in customized widths, roll lengths, and specifications to meet specific production requirements.
Optimal Resin Flow and Gas Release
High porosity in our mould release fabric guarantees seamless resin and gas escape, critical for achieving flawless composite components. Its uniform, fine-textured surface aids during the vacuum infusion process, minimizing defects and enhancing surface quality. The material promotes better resin distribution and a superior finish, making it a reliable choice for advanced manufacturing.
Robust Performance and Versatile Compatibility
Withstanding temperatures up to 180C and boasting high tensile and tear resistance, this release fabric is both durable and robust. Its compatibility with polyester, epoxy, and phenolic resins makes it highly versatile for various composite applications. Its customizable width, length, and thickness address diverse project needs and industry requirements.
FAQ's of Porous Mould Release Fabric:
Q: How is the Porous Mould Release Fabric used during vacuum infusion processes?
A: The fabric is placed as a layer between the composite layup and the breather material during vacuum infusion. This setup enables excess resin and gases to escape efficiently, ensuring a higher quality composite part with fewer imperfections.Q: What are the main benefits of using a high porosity release fabric?
A: High porosity ensures superior resin and gas evacuation, minimizing air entrapment and voids. This results in composites with enhanced structural integrity and smooth surface finishes, essential for advanced composite manufacturing.Q: When should I use this release fabric in my moulding process?
A: Use this fabric whenever you are carrying out vacuum infusion processes, especially with polyester, epoxy, or phenolic resins. It is particularly effective for situations where superior surface finish and porosity management are critical.Q: What size options are available for this release fabric?
A: Custom sizes can be provided, with tape widths ranging from 100 mm to 1500 mm, thickness between 0.15 mm and 0.30 mm, and standard roll lengths from 50 m to 100 m, ensuring you get the precise fit for your application.Q: Where can this fabric be used, and what materials is it compatible with?
A: It is suitable for use in composite moulding across aerospace, automotive, marine, and industrial sectors. The fabric is compatible with polyester, epoxy, and phenolic resins, offering broad utility in composite manufacturing.Q: Is the fabric reusable, and how should I store it?
A: Single use is recommended for optimal performance and surface quality. Store unused rolls in a dry, shaded environment at room temperature; shelf life is 12-24 months under ideal storage conditions.Tell us about your requirement
