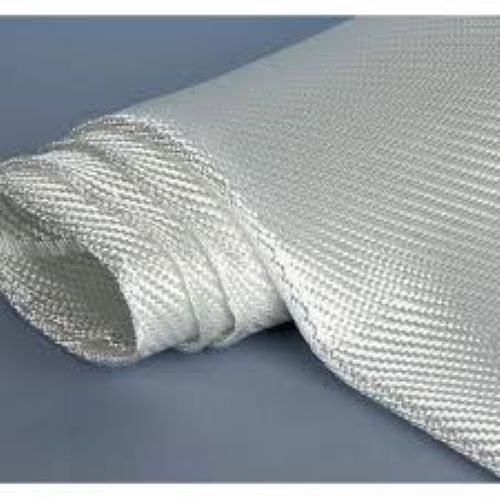

Glass Fiber Fabric
550.0 INR/Square Meter
Product Details:
- Elongation < 3%
- Shelf Life Long shelf life, typically 3-5 years
- Thickness 0.1 mm to 1 mm
- Length 50 m (customizable)
- Peeling Strength High
- Adhesive Side Single (if adhesive-backed)
- Tape Type Fabric Roll
- Click to View more
X
Glass Fiber Fabric Price And Quantity
- 100 Square Meter
- 550.0 INR/Square Meter
Glass Fiber Fabric Product Specifications
- Single (if adhesive-backed)
- Glass Fiber
- High
- Non-adhesive (plain fabric), available with optional adhesive backing
- Industrial insulation, composite reinforcement, thermal protection
- < 3%
- Fabric Roll
- White
- 50 m (customizable)
- As per roll length, 50 m typical
- 0.1 mm to 1 mm
- 1 m (standard), customized widths available
- Long shelf life, typically 3-5 years
- As per thickness specification
- 200-600 GSM (grams per square meter)
- Low
- Up to 550C
- Plain or twill weave
- Yes
- High, suitable for heavy-duty applications
- Smooth
- Resistant to most chemicals
- Excellent, easy to handle and cut
Glass Fiber Fabric Trade Information
- Cash Advance (CA), Cash in Advance (CID), Cheque
- 1000 Square Meter Per Month
- 3 Days
- No
- Within a certain price range free samples are available
- Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East
- All India
Product Description
Glass Fiber Fabric is manufactured using high-quality E-Glass fiberglass, offering outstanding thermal and mechanical performance. It is heat and flame-resistant, non-corrosive, and suitable for continuous operating temperatures up to 640C.
The fabric is widely used in various industrial insulation and protection applications, including:
- Expansion Joints
- Pipe Lagging
- Flange Covers
- Valve Covers
- Safety Clothing
- Heat Shields
- Insulation Pads
- Heavy Board Facing Fabrics
- Welding Blankets
- Composite Insulation Covers
- HVAC Insulation
| Product | Glass Composition | Yarn Type (Warp) | Yarn Type (Fill) | Thread Density (Warp) | Thread Density (Fill) | Weave Pattern | GSM | Thickness (mm) |
|---|---|---|---|---|---|---|---|---|
| FG205P | E Glass | 75-1/0 | 75-1/0 | 42 | 32 | Plain | 205 | 0.18 |
| FG300CFS | E Glass | 37-1/0 | 37-1/0 | 30 | 28 | Plain / 8H Satin | 300 | 0.25 |
| FG430CFS | E Glass | 75-1/2 | 75-1/2 | 48 | 32 | Plain | 430 | 0.33 |
| FG610P | E Glass | 1200 TEX | 1200 TEX | 6 | 6 | Plain | 610 | 0.45 |
| FG840P | E Glass | 37-1/2 | 37-1/2 | 44 | 32 | Plain | 840 | 0.80 |
| FG1300TR | E Glass | 1200 TR | 1200 TR | 10 | 8 | Plain | 1300 | 1.20 |
| FG1500P | E Glass | 37-1/4 | 37-1/4 | 44 | 32 | Plain | 1500 | 1.35 |
Unmatched Thermal and Mechanical Performance
Engineered to withstand continuous temperatures up to 550C, this glass fiber fabric is suitable for demanding applications in insulation, heat shielding, and composite reinforcement. Its high tensile strength and minimal elongation ensure robust performance, while the smooth finish allows easy integration into various systems.
Flexible, Customizable, and User-Friendly
With excellent flexibility and ease of handling and cutting, the fabric adapts easily to different shapes and sizes. Available in standard 1 m width and adjustable thickness and length, it offers tailored solutions for specific industrial requirements. The option for adhesive backing enhances versatility for various mounting or bonding needs.
FAQ's of Glass Fiber Fabric:
Q: What applications are suited for this glass fiber fabric?
A: This fabric is ideal for industrial insulation, thermal protection, and composite reinforcement. Its high temperature and chemical resistance make it particularly useful in environments that demand robustness and reliability.Q: How does the weave pattern affect the fabric's performance?
A: Plain and twill weaves enhance both strength and flexibility. Plain weave offers uniform stability, while twill provides additional pliability, making the fabric suitable for a wide range of demanding industrial uses.Q: Can the fabric be customized in terms of width or length?
A: Yes, while the standard width is 1 meter and roll length is typically 50 meters, both dimensions can be customized to meet specific project requirements.Q: Is the glass fiber fabric easy to install and handle?
A: Absolutely. The material provides excellent flexibility and can be easily cut or shaped on site, facilitating straightforward installation for various applications.Q: Does the fabric require special storage, and what is its shelf life?
A: The fabric offers a long shelf life of 3-5 years under normal storage conditions, such as keeping it dry and away from direct sunlight. Minimal care is required to maintain its properties.Q: How effective is the fabric in harsh chemical or moist environments?
A: Thanks to its low moisture absorption and resistance to most chemicals, this fabric remains durable and functional even in challenging environments prone to chemical exposure or humidity.Q: Is the product available with adhesive backing, and how does it impact application?
A: The glass fiber fabric is available both as non-adhesive (plain) and with optional single-sided adhesive backing, allowing for easier mounting and versatile use depending on installation needs.Tell us about your requirement
